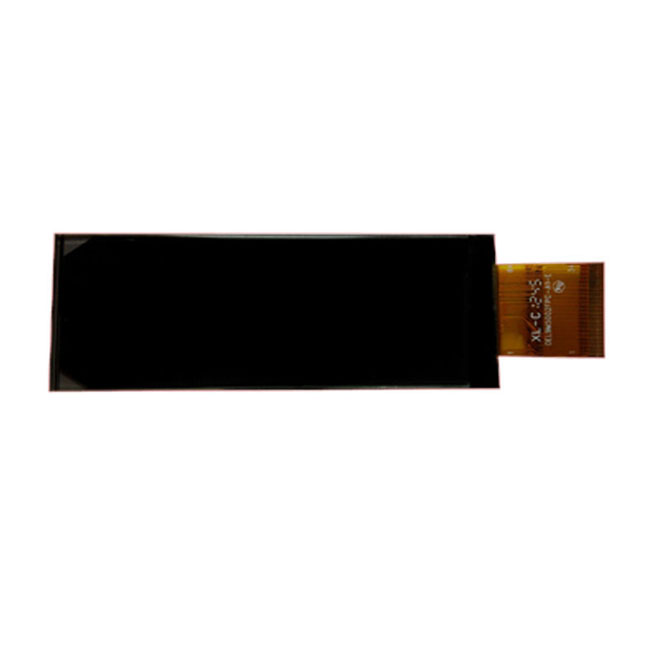

2.8″OEL9M5002-Y-E
| Item | Specification |
| Resolution | 256(H) x64(V) Lines |
| Display Format | 16,384 Pixels |
| Active Area | 17.25 (W) x 69.10(H) mm |
| Outline Dimension (Panel) | 28.5(W) x 80.5(H) mm |
| Pixel Pitch | 0.27(W) x 0.27(H) mm |
| Pixel Size | 0.245(W) x 0.245(H) mm |
| Encapsulation type | Glass Can |
| Display color | Y |
| IC package type | COG |
| Thickness | 2 mm MAX |
| Weight | < 9.5g |
| Duty | 1/64 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
