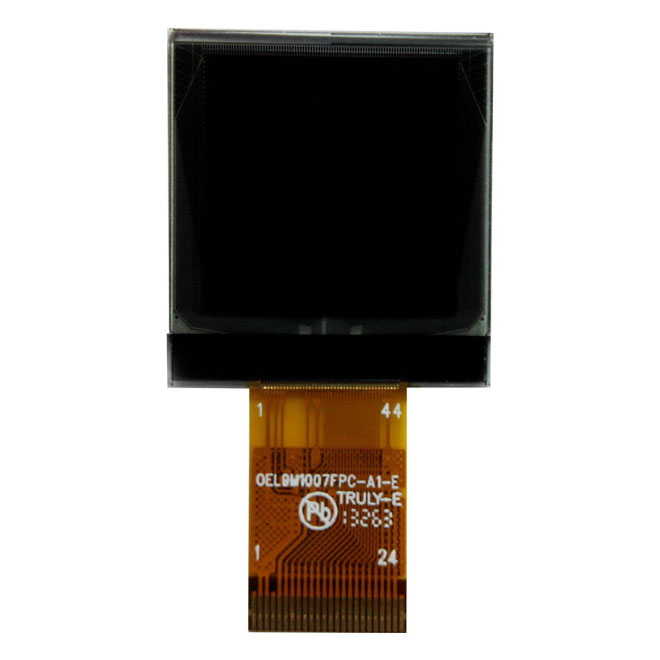

1.1″OEL9M1007-Y-E
| Item | Specification |
| Resolution | 96(H) x 96(V) Lines |
| Display Format | 9,216 Pixels |
| Active Area | 19.655 (W) x 19.655(H) mm |
| Outline Dimension (Panel) | 25.49(W) x 29.10(H) mm |
| Pixel Pitch | 0.205(W) x 0.205(H) mm |
| Pixel Size | 0.18(W) x 0.18(H) mm |
| Encapsulation type | Glass Can |
| Display color | R/G/B/W/Y |
| IC package type | COG |
| Thickness | 1.45 mm MAX |
| Weight | < 2.3 g |
| Duty | 1/96 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
