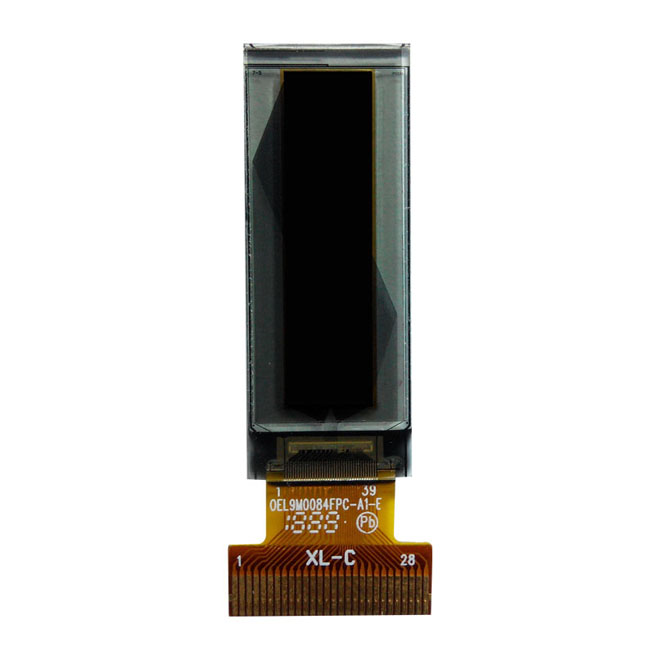

0.91″OEL9M0084-W-E
| Item | Specification |
| Resolution | 128 (H) x 32(V) Lines |
| Display Format | 4,096 Pixels |
| Active Area | 22.38(W) x 5.58(H) mm |
| Outline Dimension (Panel) | 30.00(W) x 11.5(H) mm |
| Pixel Pitch | 0.175(W) x 0.175(H) mm |
| Pixel Size | 0.155(W) x 0.155(H) mm |
| Encapsulation type | Glass Can |
| Display color | White/Yellow |
| IC package type | COG |
| Thickness | 1.45 mm MAX |
| Weight | < 1.1 g |
| Duty | 1/32 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
