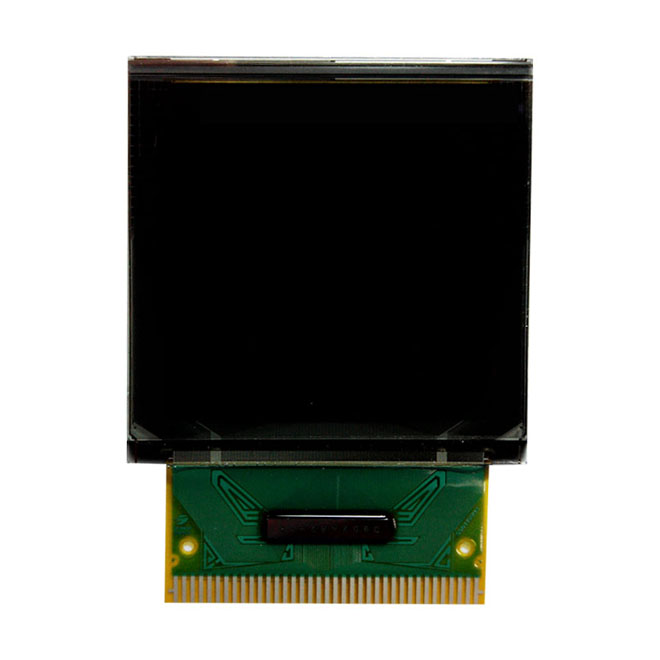

1.52″OEL9M1004-L4-E
| Item | Specification |
| Resolution | 128(H) x 128(V) Lines |
| Display Format | 16,384 Pixels |
| Active Area | 27.23 (W) x 27.23(H) mm |
| Outline Dimension (Panel) | 35.50(W) x 34.60(H) mm |
| Pixel Pitch | 0.213(W) x 0.213(H) mm |
| Pixel Size | 0.183(W) x 0.183(H) mm |
| Encapsulation type | Glass Can |
| Display color | 262K |
| IC package type | COF |
| Thickness | 1.45 mm MAX |
| Weight | < 3.6 g |
| Duty | 1/128 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
